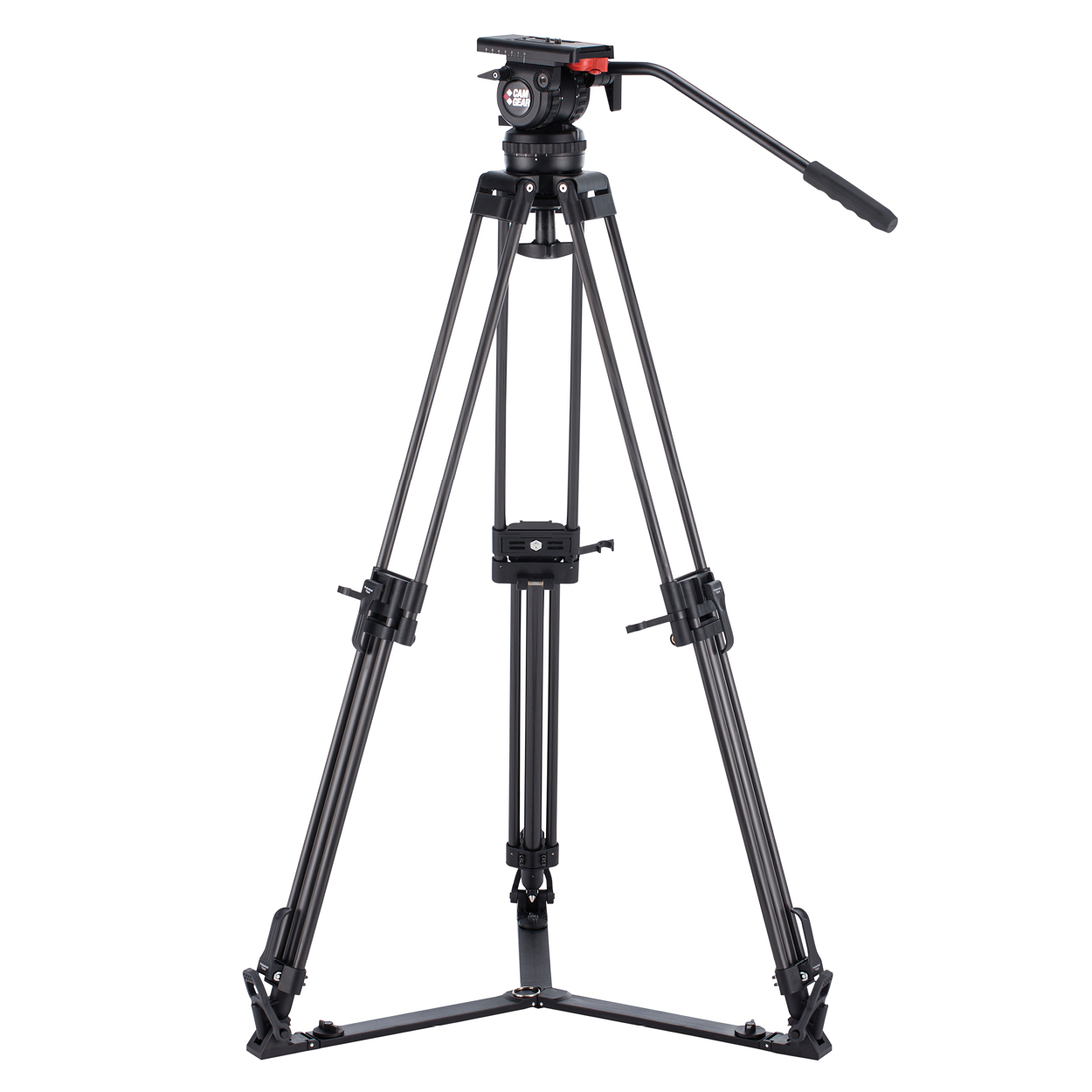

V10P CF GS Payload 13kg Bowl 100 mm

Tripod System incl. V10P Fluid Head, T100/CF2 Carbon Fiber Tripod, Pan Bar PB-1, Ground Spreader GS-2 & Tripod Bag

SKU: CMG-V10P-GS-CF-TRISYS
EAN-13: 8718591676291

Specifications

Bowl Diameter 100 mm
Section 2 Stages
Material Carbon Fiber
Camera Platform Type Mini Euro plate
Camera Plate Camgear WP-1 1/4" screw, 3/8" screw
Counterbalance System 8 steps (1-8)
Pan & Tilt Drag 4 steps (1-4)
Pan & Tilt Range Pan: 360° / Tilt: +90/-75°
Temperature Range -40°C to +60°C / -40°F to +140°F
Pan Bar Camgear PB-1
Maximum Payload 13 kg / 28.66 lbs
Weight 6.22 kg / 13.71 lbs
Height Range 56 cm-165 cm / 21.7 inch-65 inch
Transport Length 86 cm / 33.9 inch
Sliding Range 60 mm / 2.36 inch

V-Series

T100/CF2 GS Carbon Fiber Tripod Payload 40kg Bowl 100 mm

2-Stage 100mm bowl Tripod with Ground Spreader

SKU: CMG-T100-CF2-GS-TRIPOD
EAN-13: 8718591676635

Specifications

Bowl Diameter 100 mm
Section 2 Stages
Material Carbon Fiber
Maximum Payload 40 kg / 88.18 lbs
Weight 3.28 kg / 7.23 lbs
Height Range 43 cm-158 cm / 17 inch-62.2 inch
Transport Length 70 cm / 27.6 inch

Tripod Soft Bag SB-1

For DV6P, V10, V10P, V12, V15P & V20S Tripod Systems

SKU: CMG-SOFTBAG-1
EAN-13: 8718591676918

Specifications

Weight 1.1 kg / 2.43 lbs

Included with V10P CF GS

V10P Fluid Head
CMG-V10P-FLHEAD-2
T100/CF2 GS Carbon Fiber Tripod
CMG-T100-CF2-TRIPOD
Ground Spreader GS-2
CMG-GROUNDSPRDR-2-1
Pan Bar PB-1
CMG-PANBAR-1
Wedge Plate WP-1
CMG-WEDGEPLATE-WP1
Bowl Clamp BC-2
CMG-BOWLCLAMP-2
Tripod Soft Bag SB-1
SB-1
